Starter Triangle for Chevron Striping NFPA 1901 (V98 Lime or Red)
Starter Triangles (Our Triangles Match Lime or Red V98 only) - $10 each
Creating chevron panels on any vehicle is relatively easy. You first find dead center, mark it with a line from top to bottom, and then apply a triangle with 45 degree angled sides to the center at the bottom. After that you simply apply 6" alternating material in red and lime and then trim.

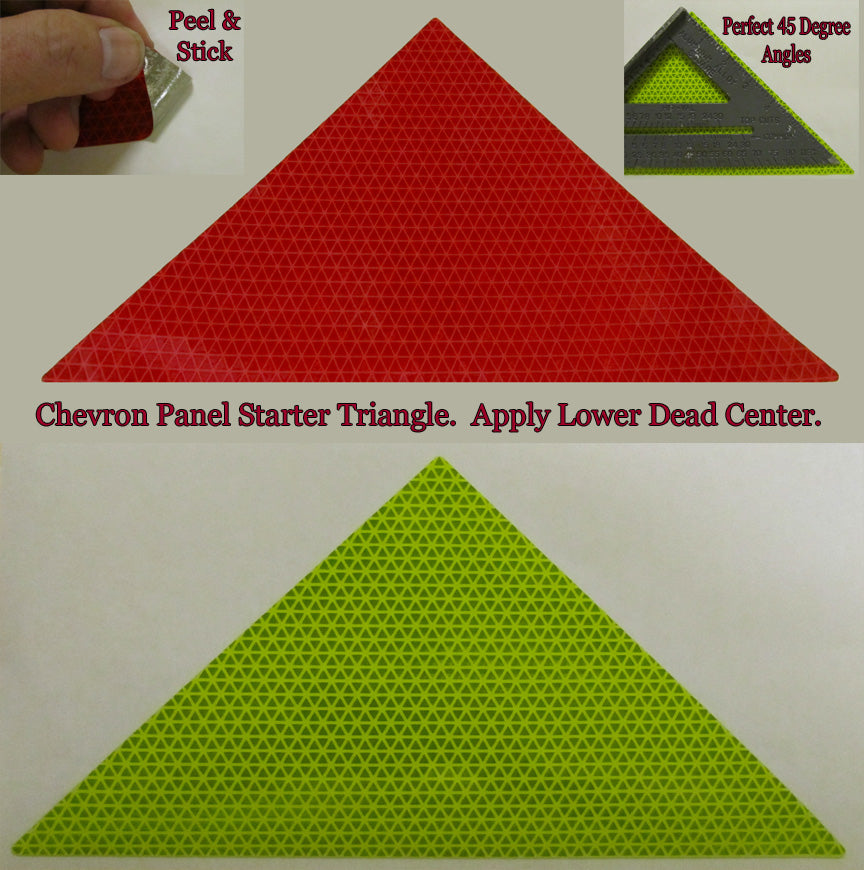

On this page we sell fluorescent lime and red precut starter triangles cut from Orafol/Reflexite V98 material which is the same material we use for all of our rolls and shapes on this site. To use them you simply peel off the backing, apply and press on with a soft cloth or rubber squeegee. Our red and lime triangles measure 5.5" tall and about 11" wide at the base. The angles are exactly 45 degrees to meet NFPA 1901 standards. Along with the triangle you would need to purchase 6" V98 Chevron Striping in fluorescent lime and red. With these items you would have all you need to create vivid, reflective chevrons on your vehicles or trailers.
