Oralite RGA (Rail Gate Arm) Tape - Red & White 16/16 Block Pattern

  • Sale
  • Regular price $70.00


1" x 150 Roll 16/16 Red & White RGA Tape - $70.00

2" x 150 Roll 16/16 Red & White RGA Tape - $130.00

3" x 150 Roll 16/16 Red & White RGA Tape - $200.00

4" x 150 Roll 16/16 Red & White RGA Tape - $240.00

6" x 150 Roll 16/16 Red & White RGA Tape - $340.00

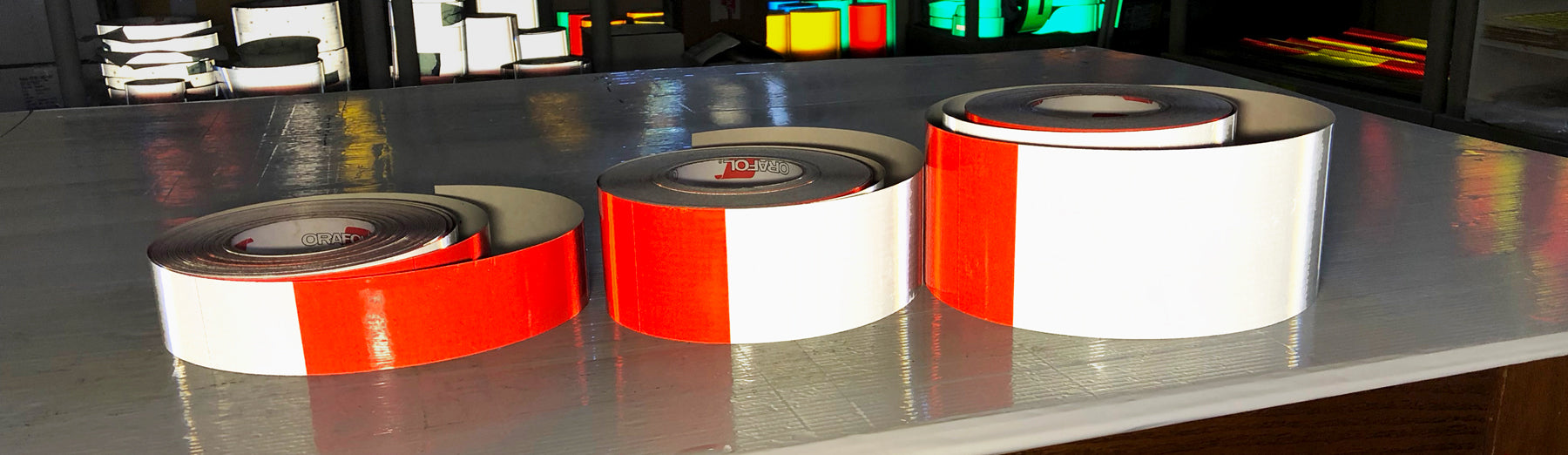

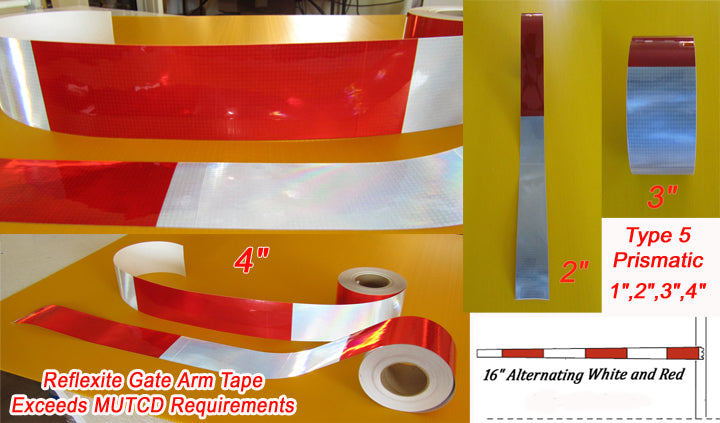

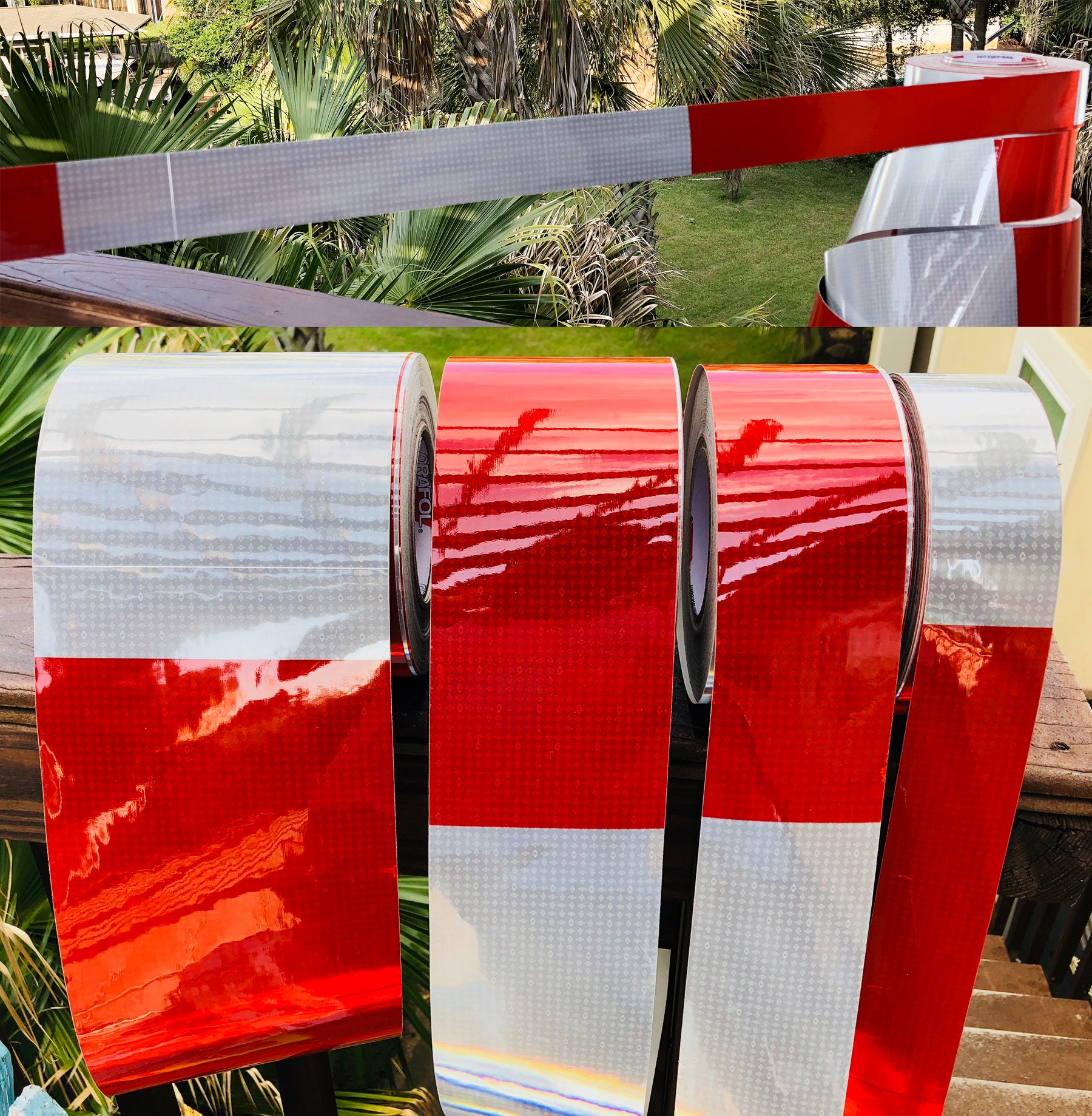

Our ORALITE (Reflexite) Rail Gate Arm Prismatic Retroreflective Tape is a Type 5 prismatic reflective tape. It alternates red and white (silver) in 16 inch intervals to meet federal requirements for marking gates and traffic control arms. It has a 10 year outdoor rating and can be used to mark rail and other gate and gate arm conspicuity applications as well as a variety of other applications where bright night and daytime conspicuity is needed. Incredibly bright tape that can be seen for thousands of feet away.  Aggressive adhesive (peel and stick application).  We carry 150 foot rolls of RGA tape in 1", 2", 3", 4" and 6" widths.

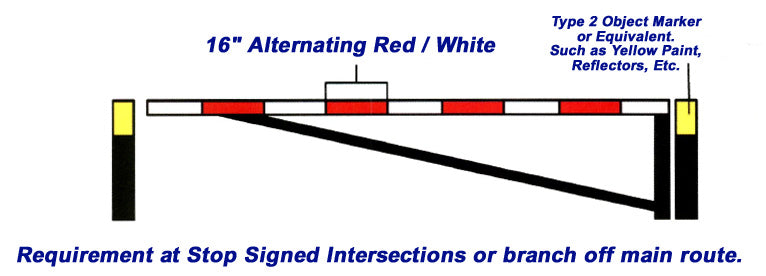

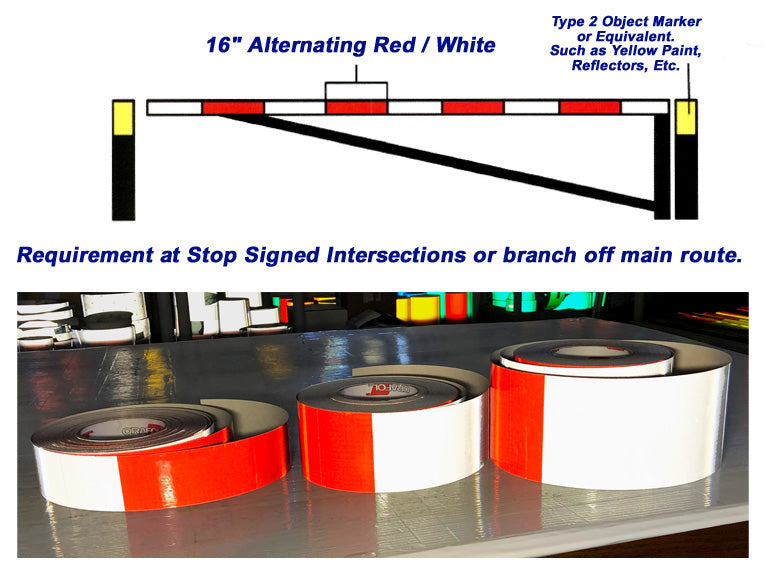

This tape exceeds the requirements of the US DOT FHWA Manual on Uniform Traffic Control Devices (MUTCD) - 2009 Edition per Section 8C.04 Paragraph 05 stating "Gate arms shall be fully retroreflectorized on both sides and shall have vertical stripes alternatively red and white at 16-inch intervals measured horizontally". (more info at this link)  To see our spec sheet click here

    If you have any questions about our Oralite RGA (Rail Gate Arm) Tape - Red & White 16/16 Block Pattern please reach out to us using the contact link above. Also, if this is not the product you need, please use the "Products" drop down menu above. We carry a wide variety of reflective tapes in a multitude of colors, lengths, widths and types. If you do not find what you need just let us know and we can try and source it for you.
