Chevron Panels - One Piece - Affordable Engineer Grade Reflective (Air Egress) - Lime/Red

  • Sale
  • Regular price $40.00


More Affordable Engineer Grade Type 1 (with Air Release) Premium Reflective Chevron Panels in Red/Lime. (For Other Colors, Contact Us)

4 inch tall x 5 foot long (60") panels - $40
4 inch tall x 6 foot long (72") panels - $50

6 inch tall x 5 foot long (60") panels - $45
6 inch tall x 6 foot long (72") panels - $55

8 inch tall x 5 foot long (60") panels - $60
8 inch tall x 6 foot long (72") panels - $70

12 inch tall x 5 foot long (60") panels - $90
12 inch tall x 6 foot long (72") panels - $100

15 inch tall x 5 foot long (60") panels - $110
15 inch tall x 6 foot long (72") panels - $120

17 inch tall x 5 foot long (60") panels - $130 (stackable size)
17 inch tall x 6 foot long (72") panels - $150 (stackable size)

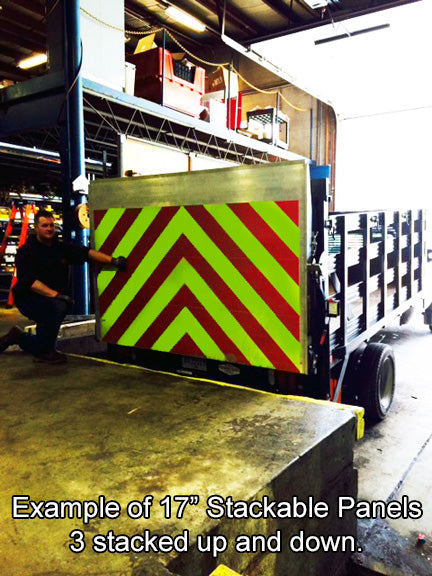

*** stackable means that when applied above or below each other, the stripes line up. So larger chevron designs can be easily created. Only our 17" panels do this.  See picture in gallery. ***

Our affordable Pre Striped Reflective Chevron Panels are made from Type 1 Engineer Grade "Air Release" Premium Reflective Sheeting.  These engineer grade panels are similar to our V98 prismatic panels, but thinner, more conformable, and feature and air release backing for easier installation.  Still bright, but made for applications where extreme sight distance is not needed.  Printed and laminated for a long outdoor life.  More conformable than our V98 panels with Type 1 brightness like the graphics on the side of a police car.  Because of the special air release adhesive backing, the panels can be applied, and any bubbles can be squeegeed out for a smooth bubble free application.  Easy to apply. The panels are self adhesive and have a peel off backing.

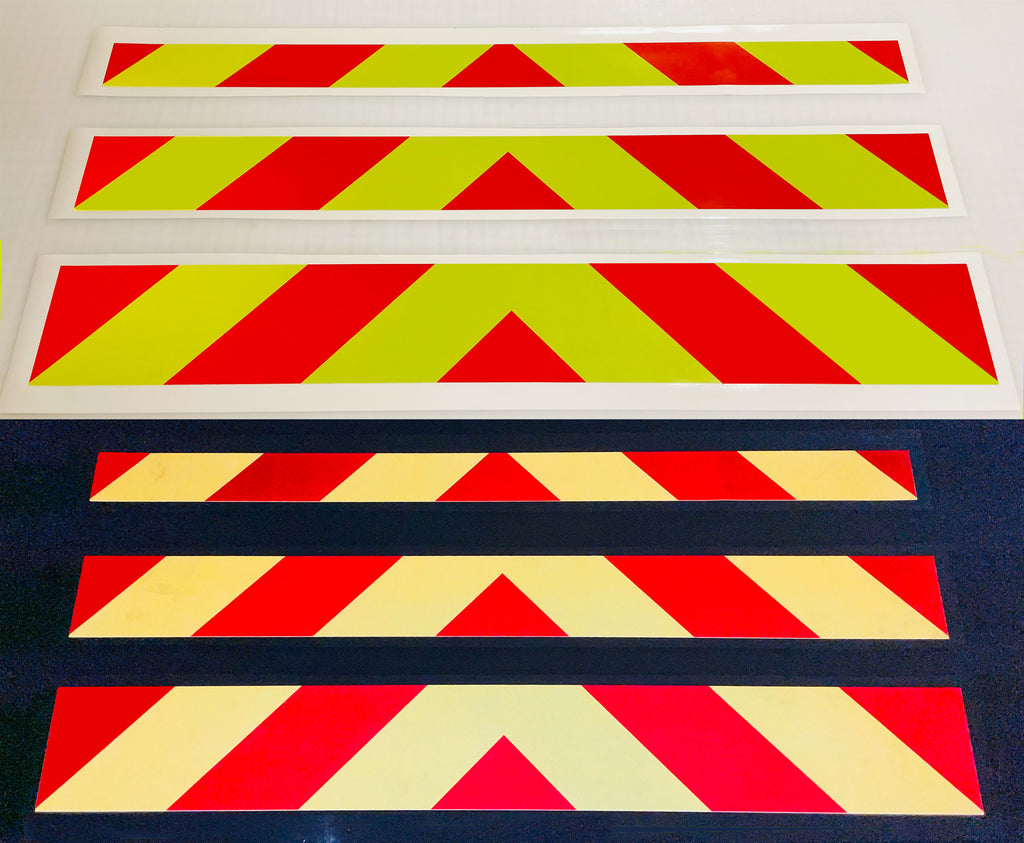

Available in  six widths and two lengths.  4", 6", 8", 12", 15" and (17" stackable) wide and  60" or 72" long.  The alternating stripes are 6" wide when measured diagonally.  This is compliant with the NFPA 1901 requirements for fire apparatus. For NFPA applications you would want Red and Fluorescent Lime.  Both colors are reflective.  For other colors contact us.

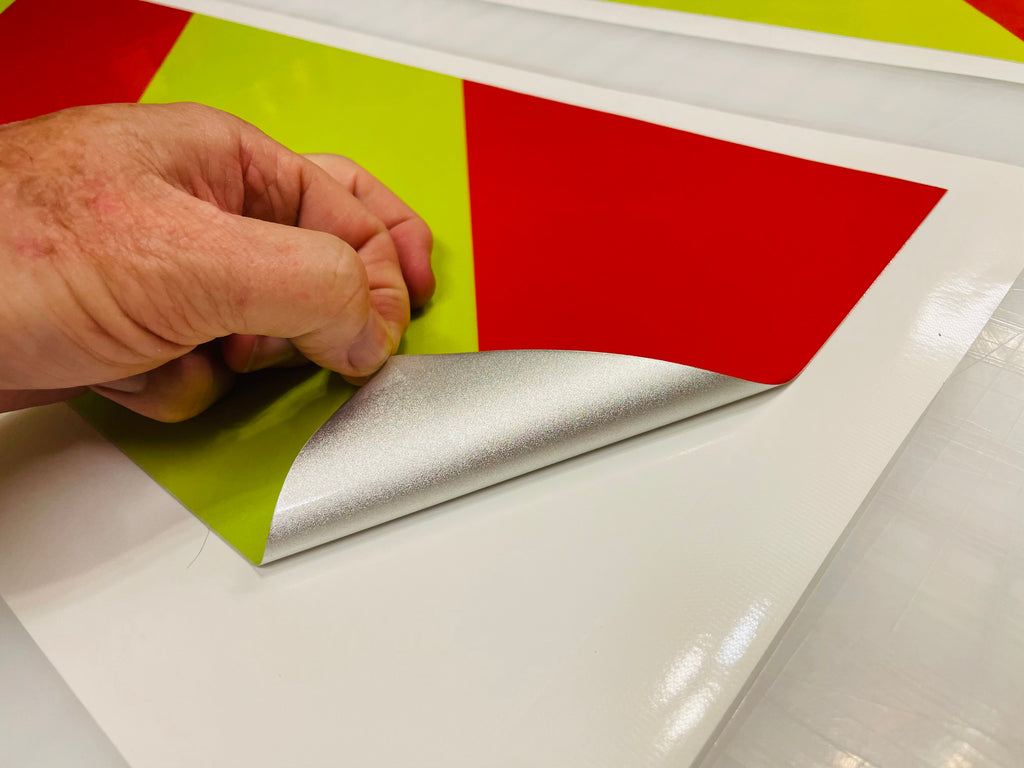

Our engineer grade reflective chevron panels are created Premium Air Release Engineer Grade Reflective Films that has been printed and laminated for a long outdoor life. They are bright in the daytime and at night.   For easy installation, simply peel the backing and apply to a clean, dry surface.  I use a soft cloth to press the panel on.  Press out any bubbles with a cloth or squeegee.

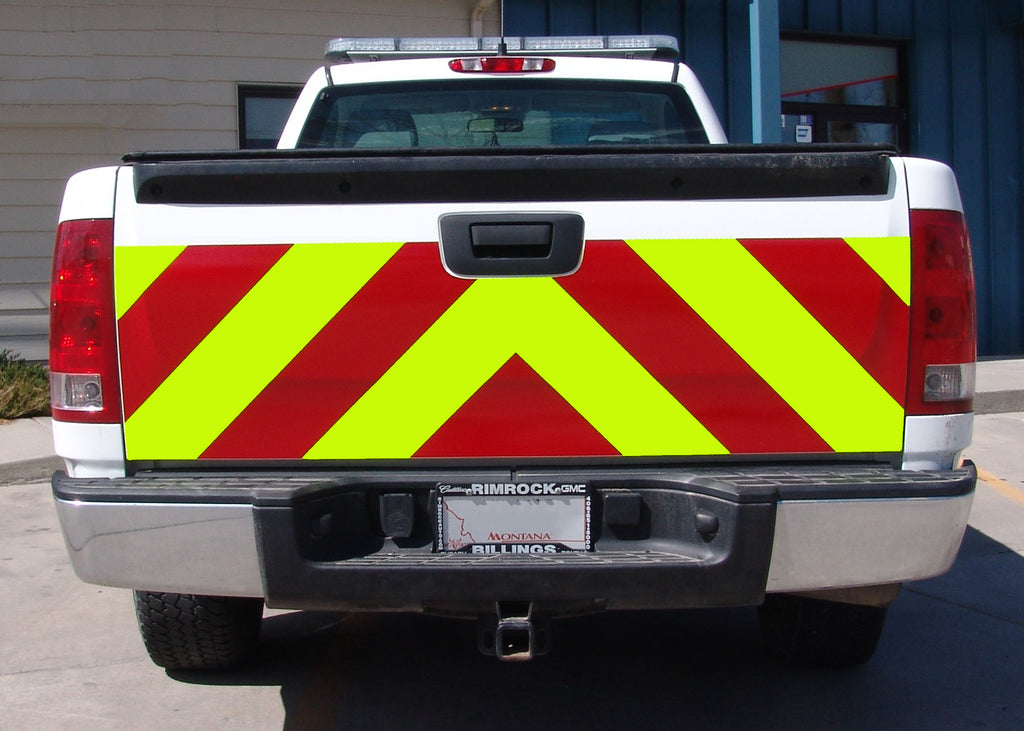

Studies show that through increased day and night visibility, chevron panels can substantially reduce rear end collisions.  For brighter panels that can be seen from farther away, go to our V98 Chevron Panels.

    Need assistance with your Chevron Panels - One Piece - Affordable Engineer Grade Reflective (Air Egress) - Lime/Red purchase? At Reflective Inc., our experts are available to answer any questions you may have, and to make sure you get exactly what you need for your safety / visibility project. Feel free to email us at steve@reflectivestore.com, text us at 850-525-2401 or call us at 850-934-3157.
